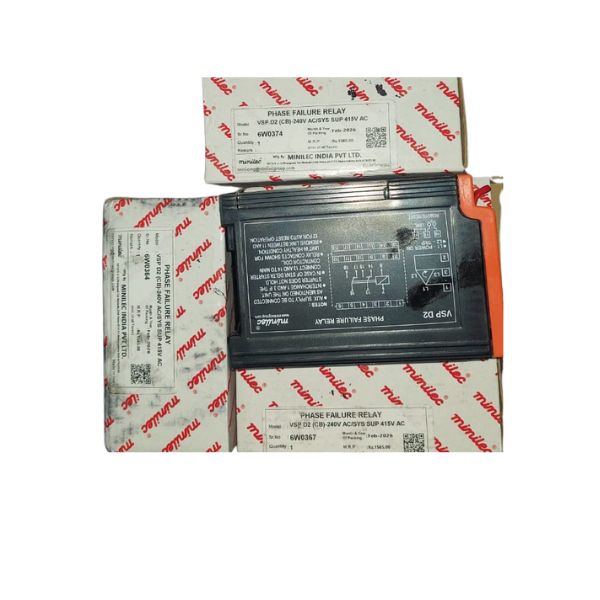

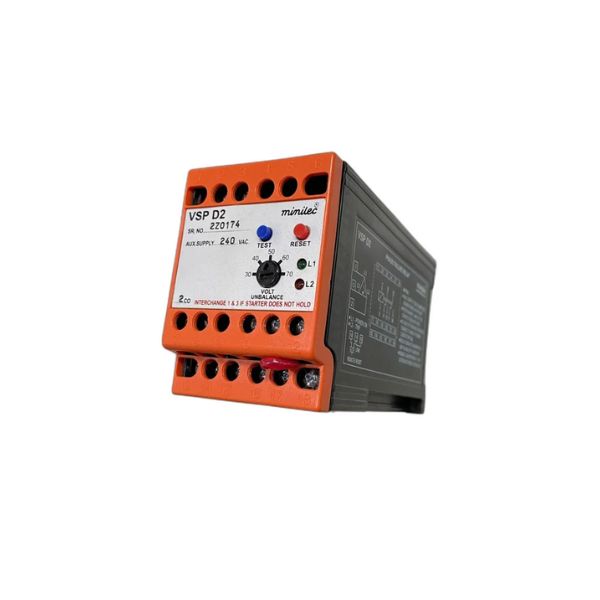

Minilec Phase Failure Relay DSP D2( READY STOCK)

Original price was: 5,200.00৳ .Current price is: 5,000.00৳ .

VSP D2 is a phase failure relay operating on negative sequence voltage sensing principle. It offers protection against
* Unbalanced voltage condition.
* Phase failure condition.
* Phase sequence reversal condition

Auxiliary Voltage Supply: 220V AC

Category: Brand:
Description

TECHNICALSPECIFICATIONS OF VSP D2
1. SYSTEM SUPPLY VOLTAGE

380-440V AC ±20 %

2. AUX. SUPPLY VOLTAGE 110-120/220-240 V AC ±20%

3. FREQUENCY 50 / (60) Hz, K 3%

4. POWER CONSUMPTION 3 VA ( max.)

5. OUTPUT RELAY CONTACT 2 Changeover

6. OUTPUT CONTACT RATING ( RESISTIVE)

5Amp., 240VAC

7. LIFE EXPECTANCY
6
0.5 x 10 operations at 100% rating
8. TRIP SETTING (volt)
30V to 70 V ± 6V (adjustable)

9. TRIP TIME DELAY :
3.5Sec. ± 1.5 Sec.

10. RESETTING Mode:Auto / Manual / Remote
11. RESET GAP : 10 – 18V
12. INDICATIONS :L1 : Green – Power ON,L2 : Red – Trip
13. ENCLOSURE : ABS.
14. DIMENSIONS (mm) : Overall : 76 X 56.5 X 117.5
Mounting : 68 center to center
15. MOUNTING : 35 mm Rail Mounting & Panel Mounting
16. WEIGHT (gms) : 400 gms. (approx.)
17. OPERATING CONDITIONS :0 0
TEMPERETURE : -5C to + 60C
HUMIDITY : Upto 95% Rh
